The calculator will use a parallel resistance formula to find the parallel load resistance of the circuit.
“A resistor whose each terminals are linked to the same node is known as the parallel resistance”
In an electrical community containing parallel resistors, the current of the complete circuit could be equal to the sum of all of the currents flowing through each single resistor.
How to find the total resistance in a parallel circuit with the following resistors connected in parallel?

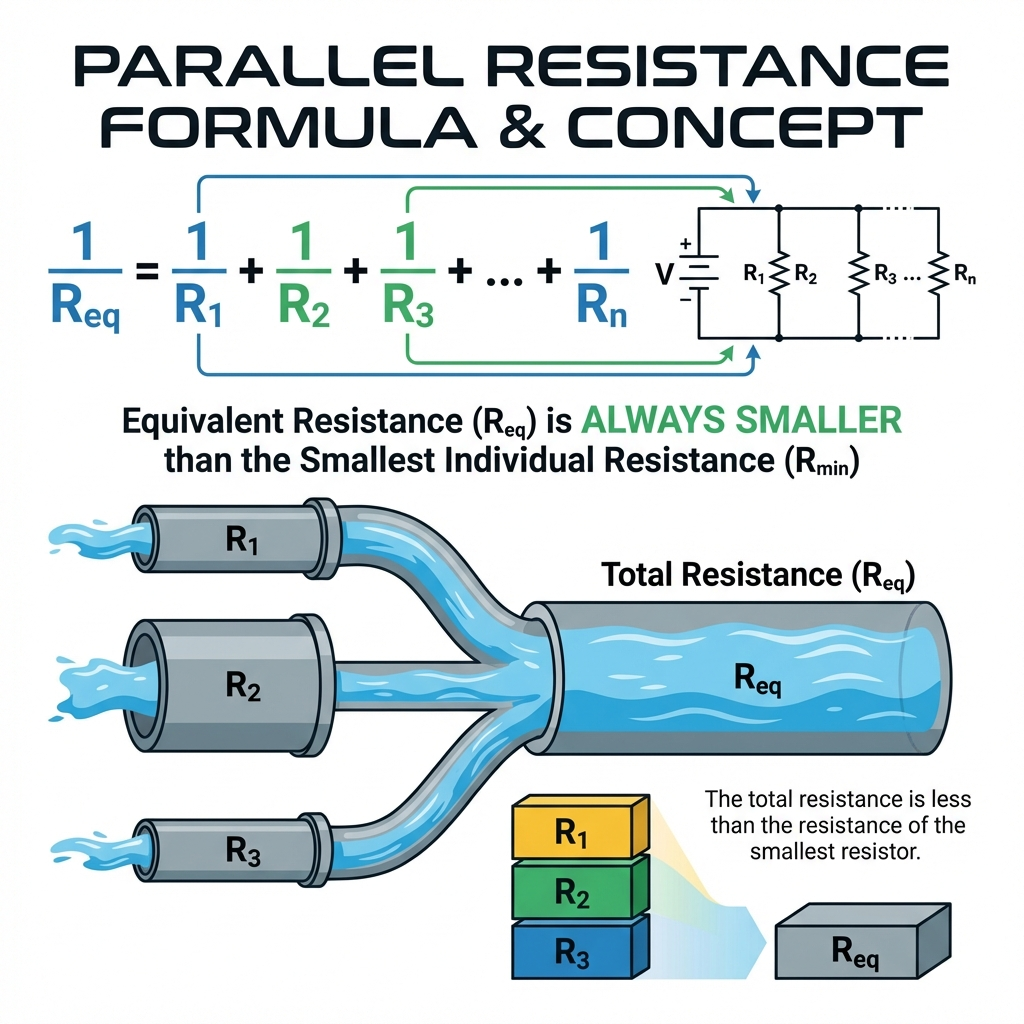

To calculate the equivalent resistance () in a parallel circuit, we use the formula:
Step 1: Substitute the given resistor values:
Step 2: Calculate each term:
Step 3: Add the terms:
Step 4: Find the reciprocal to calculate :
Final Answer: The total resistance of the parallel circuit is approximately 13.18 kΩ.
Property | Description |
---|---|
Definition | A parallel resistor circuit has multiple resistors connected side by side, sharing the same voltage but dividing the current. |
Formula | 1 / R_eq = 1 / R₁ + 1 / R₂ + 1 / R₃ + ... + 1 / Rn |
Units | Resistance is measured in Ohms (Ω). |
Purpose | Used to find the equivalent resistance of multiple resistors in a parallel configuration. |
Example Calculation | If R₁ = 10Ω and R₂ = 20Ω, then: 1 / R_eq = (1/10) + (1/20) = 0.1 + 0.05 = 0.15 R_eq = 1 / 0.15 = 6.67Ω |
Parallel Circuit Behavior | In a parallel circuit, the total resistance decreases as more resistors are added. |
Applications | Used in electrical circuits, power distribution, and load balancing. |
Current Distribution | The total current is divided among the resistors based on their individual resistances. |
Voltage in Parallel Circuits | The voltage remains the same across all resistors in parallel. |
Limitations | Requires precise calculations when dealing with multiple resistors of different values. |
The addition of extra resistors in an electrical network introduces new pathways for the currents to flow. that is why the addition of resistors is at once proportional to the increment in charge go with the flow. This increment within the price also can be determined the usage of this parallel circuit calculator.
Two resistances may be taken into consideration in parallel connection if nodes at each ends of the resistors are the equal. In one of these case, the resistances R_1 and R_2 will be parallel such that (R_1||R_2). And if there may be any other total resistance R_3, then it'll be in series with the parallel aggregate of those two resistors. if your intention comes up with the on the spot calculations of this equal resistor, the usage of this parallel resistor calculator is the best choice to cross by.
A Parallel Resistor Calculator is a tool that makes it easy to find the total resistance when you have several resistors connected side by side. In a parallel circuit, the total resistance is found by adding the reciprocals of the individual resistances. This implement effortlessly eases intricate computations, becoming vital for circuit technicians and amateurs in electrical systems, guaranteeing precise resistivity figures for peak functionality.
Adding more resistors in a parallel circuit offers more routes for the electric current to travel, which collectively diminishes the total resistance encountered by the circuit. Since the flow possesses several routes, the full resistance to flow diminishes. This concept is commonly applied in electrical engineering for steering current flow in intricate circuits.
Yes, resistors with different values can be connected in parallel. The total resistance is calculated using the reciprocal formula. Cheaper resistors add more to the overall ease of electricity flow, which means if you put different resistors together, the overall resistance is always smaller than the one with the lowest resistance. This technique is used in circuit design to achieve precise resistance values.
Parallel resistors, commonly found in gadgets, electric networks, and domestic tools. They help regulate voltage and current in circuits, ensuring stability. In a simplified way, LED lights work with resistors in side-by-side pairs to spread power the same for every LED, avoiding weak lighting in some.
If a resistor breaks (opens up) in a parallel setup, the other resistors keep working, so the electricity flows as before. 'In contrast to serial circuits, breakdowns in any single part cause an entire network's power or signal to fail. Still, parallel circuits boast redundancy, enhancing their dependability in systems for electricity and data transmission. '
While congruent resistor grids can be condensed into a uniform resistance, immediately transforming them into an inline circuit isn't simple. This occurs due to the varying currents in separate pathways within a parallel circuit, in contrast to a solitary line in a series arrangement. Engineers use equivalent resistance concepts to simplify circuit analysis efficiently.
In an equivalent resistor series, the whole current is split across the paths. Each resistor lets through electricity differently depending on its weakness, so the ones with less weakness carry more electricity. The total flow of electricity in the circuit adds up from all the electric paths, which helps spread the power evenly among the parts.
Adding more resistors in parallel decreases the total resistance. This occurs since more electrical pathways arise, diminishing the total impedance to the electric current. Adding resistors to a parallel circuit drops the overall resistance, which makes it handy for managing electrical devices.
Parallel resistors facilitate voltage steadiness by permitting current dissemination across devices. In voltage divider circuits, they maintain consistent voltage levels, preventing fluctuations. Power supplies use this method to keep a constant power voltage, helping devices work correctly.
