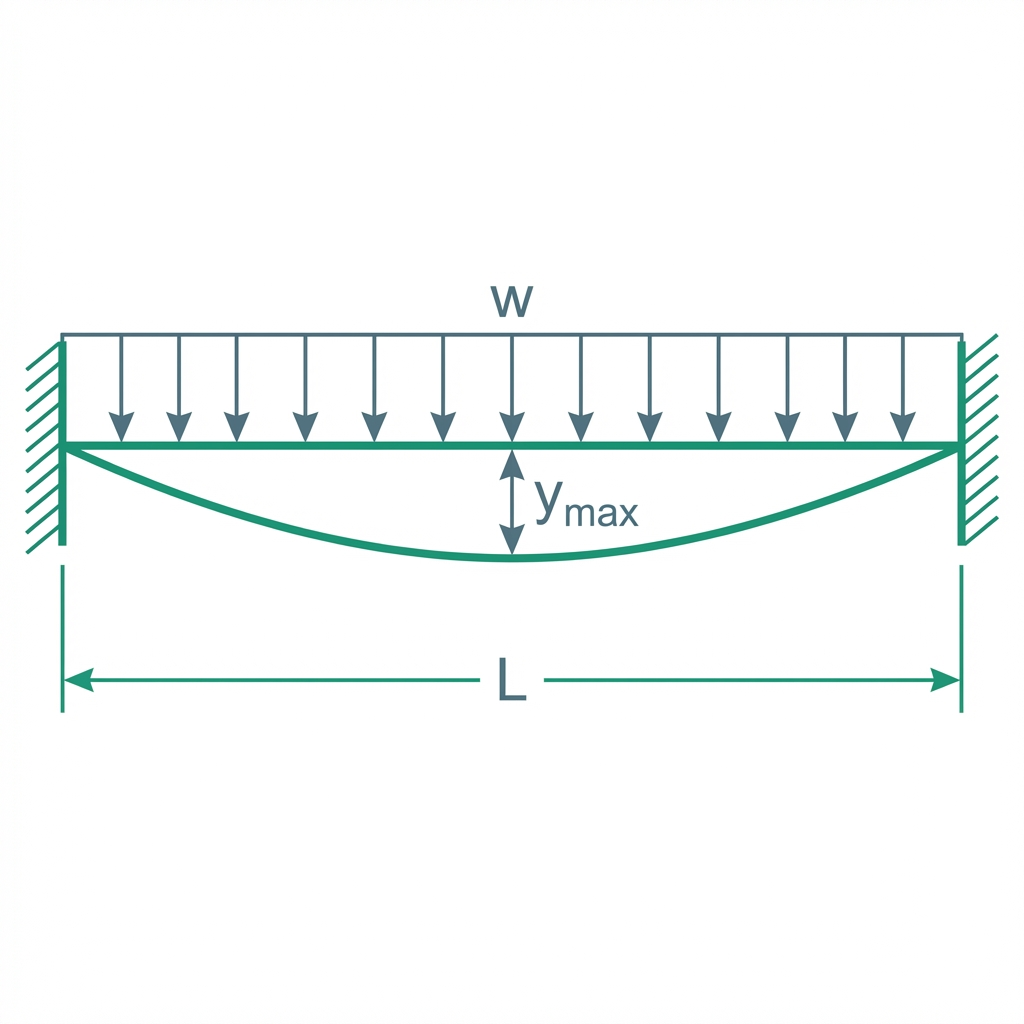

Select beam type, load type, and enter the necessary entities. The tool will readily let you know how much deflection is there in the beam.
Following beam deflection formulation will help you out in determining the respective beam deflections for certain masses it contains

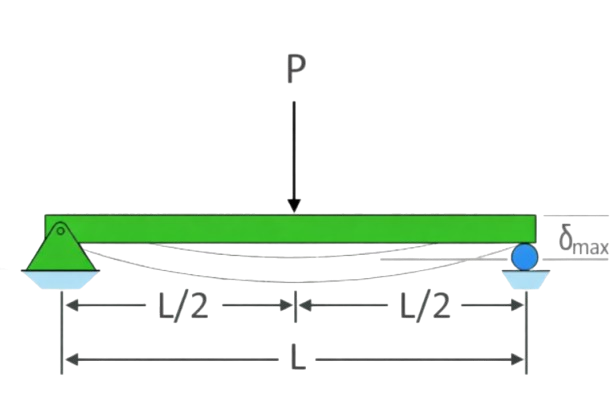

\(𝛿_{max}=\dfrac{PL^{3}}{48EI}\)

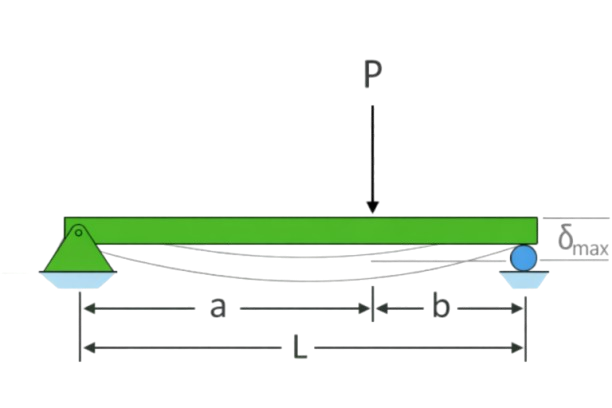

\(𝛿_{max}=\dfrac{Pb\left(3L^{2}-4b^{2}\right)}{48EI}\)

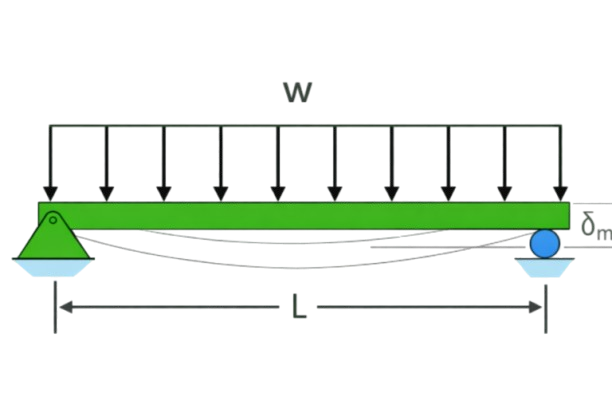

\(𝛿_{max}=\dfrac{5wL^{4}}{384EI}\)

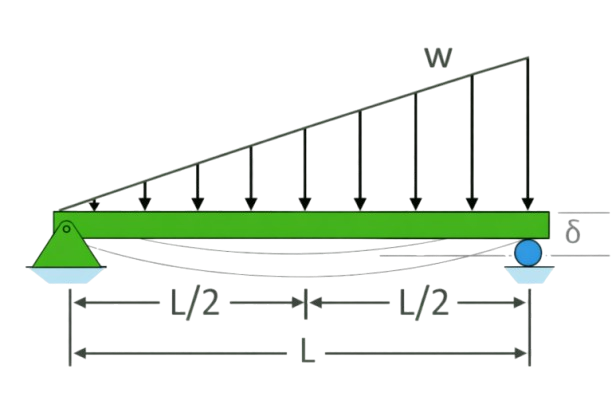

\(𝛿_{max}=\dfrac{0.00652wL^{4}}{EI}\)

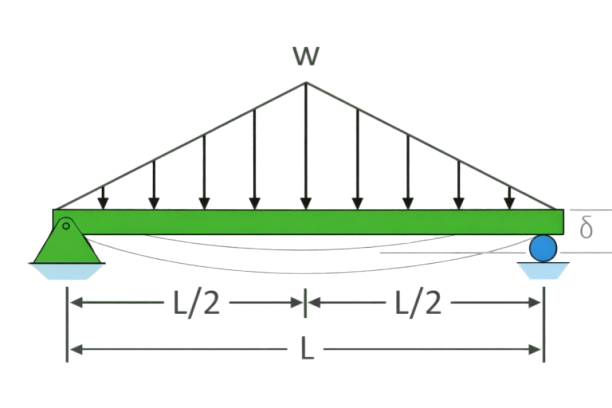

\(𝛿_{max}=\dfrac{wL^{4}}{120EI}\)

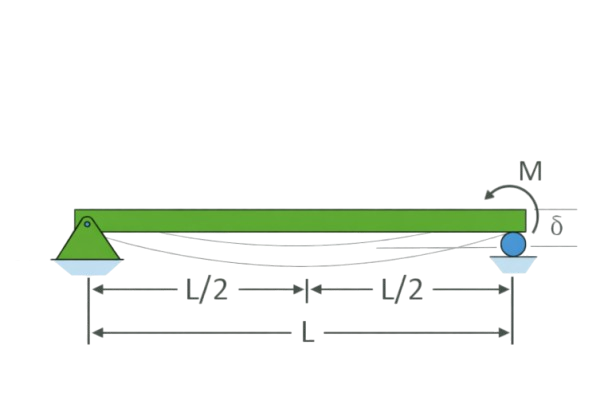

\(𝛿_{max}=\dfrac{ML^{2}}{9\sqrt{3}EI}\)
For those specific types of beam, our metallic i beam deflection calculator exclusive equations which can be as follows:

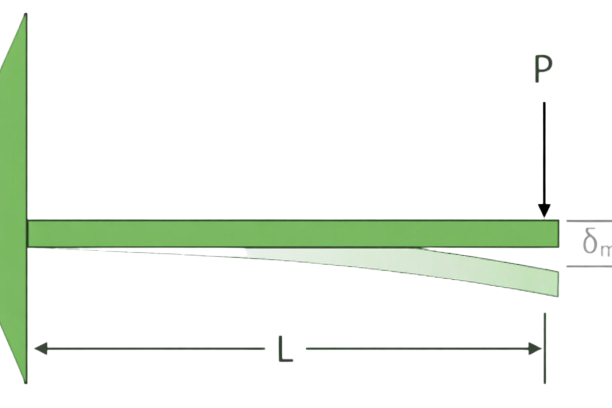

\(𝛿_{max}=\dfrac{PL^{3}}{3EI}\)

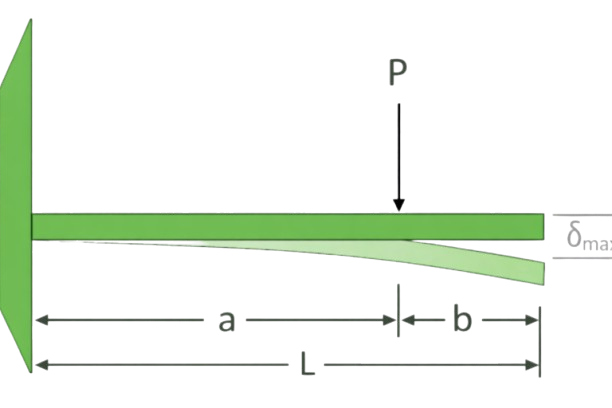

\(𝛿_{max}=\dfrac{Pa^{2}\left(3L-a\right)}{6EI}\)

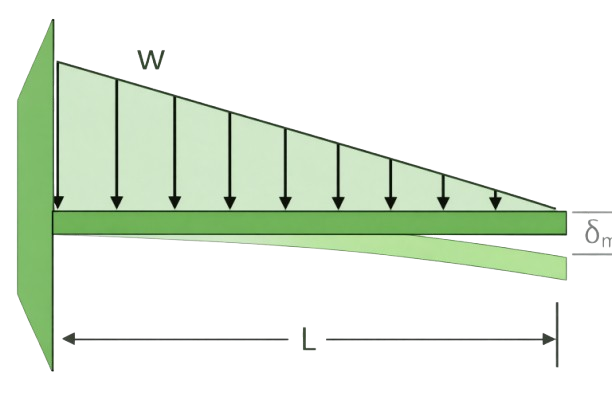

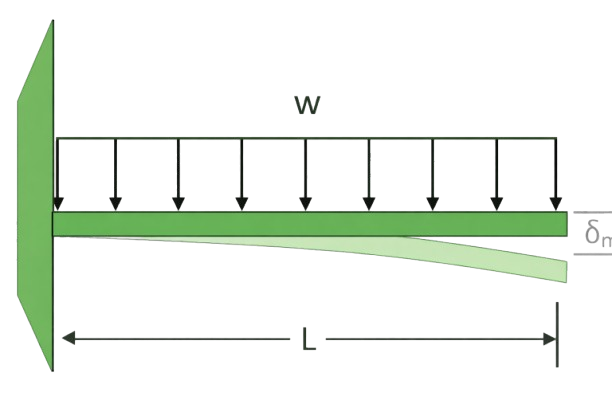

\(𝛿_{max}=\dfrac{wL^{4}}{30EI}\)
\(𝛿_{max}=\dfrac{11wL^{4}}{120EI}\)

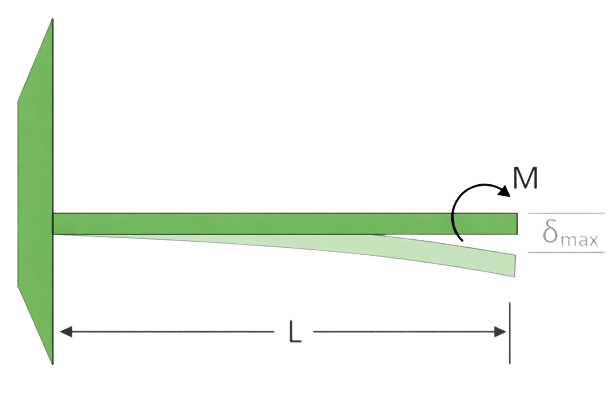

\(𝛿_{max}=\dfrac{ML^{2}}{2EI}\)
To apply this beam deflection calculator, comply with the underneath-stated steps:
| Property | Symbol | Formula | Example |
|---|---|---|---|
| Deflection | δ | δ = (F × L³) / (3 × E × I) | If F = 100 N, L = 2 m, E = 200 GPa, I = 0.0001 m⁴, then δ = 0.00067 m |
| Force | F | F = (3 × E × I × δ) / L³ | If δ = 0.00067 m, E = 200 GPa, I = 0.0001 m⁴, L = 2 m, then F = 100 N |
| Beam Length | L | L = ∛( (3 × E × I × δ) / F ) | If F = 100 N, δ = 0.00067 m, E = 200 GPa, I = 0.0001 m⁴, then L = 2 m |
I want my instrument to determine the deflection of a beam under a specific load. Engineers, designers, and constructors utilize this instrument to validate the strength and security of structural elements in edifices, infrastructures, and mechanisms. Infiltrating indicators like composition, width, outline, and stress power, the model estimates the disparity at diverse spots across the girder. This shows that buildings are kept secure and strong, not going past the allowed bending limit, preventing breaks or damage.
When a beam is excessively flexed, it could fracture frailly, oscillate erratically, or collapse. Engineers make sure the bending does not go beyond safe limits to prevent damage to walls and their attachments. If a building bends too much, it might be uncomfortable. Machine components might be misplaced, and walkways could fail to support loads evenly. Utilizing a structural extension computation facility aids in selecting suitable materials, shape outlines, and support arrangements to ensure the building resists projected strains without excessive distortion.
Numerous factors contribute to the extent a beam flexes, such as its composition, its curvature, its length, and the load it carries. A stronger material like steel bends less than wood when pushed with the same force. A wider cross-section resists bending better than a thin one. Extensions sometimes flex more, and the support condition - if they are at both ends (restrained), centered (simply supported), or unsupported at one (overhanging) - can influence their flexion. A device for estimating stress in timber employs these implements to ensure that constructions are accurate, aiding creators in crafting robust and secure edifices.
Shifting the load over a beam significantly affects its deformation. When an individual places a majority of their weight on a slim plank, it flexes more than when the mass is distributed uniformly across it. Point loads create localized stress, while uniform loads distribute stress more evenly. Supports that are attached only to one side can bend more easily than supports that have support on both sides at their ends. A spine flex assessor allows users to traverse diverse strain conditions and scrutinize their impact on the spine's curvature integrity, ensuring proper skeletal alignment.
Beams can be supported in various ways, affecting their deflection behavior. Simply supported beams are fastened at both ends with minimal restrictions in twisting motion, as opposed to cantilever beams, which are connected on a single end and non-connected at the other end. In this revised version, the goal has been to find synonyms for key terms such as "anchored" -> "fastened,"Fixed beams have supports at both ends that prevent rotation, reducing deflection. Continuous beams extend over multiple supports, distributing loads more efficiently. Support benevolent can wield a different impact when it flexes, and an apparatus that approximates how much a beam will arch as per the selected configuration. Different groups of assistance reshape the shape of woodworking, and a device tailored to predict the contour improves future planning considering the support setup.
The makeup of a beam affects its stiffness and ability to resist flexure. Metals such as steel and durable concrete possess substantial stiffness and move less than wood or aluminium. The stiffness value (E) refers to an important property that shows how well a material can hold its form when pushed or pulled. Increase in elasticity coefficient signifies reduced bending for identical applied force. A load-bearing assessor utilizes this quality to quantify disparate materials' reactions to stress, helping builders elect the ideal substance for structural fortitude.
Too much crook can be reduced by using a stiffer material, increasing the beam's girth, or curtailing the span it covers. Augmented support, such as braces or fortifiers, help to distribute the load more uniformly and effectively. Implementing more stiff columns like I-beams or reinforced concrete sections, likewise diminishes flexure. An obliquity gauge empowers framers to appraise various configurations and materials to identify the ideal method to circumvent significant warpage in structures.
Flutter evaluation is used in various engineering subjects, like structure building, mechanics, and aircraft design. In buildings, it ensures floors and roofs don’t sag under weight. In bridges, it helps maintain structural integrity under traffic loads. . s, as a mechanical engineer, you design supports for machines. Aerospace engineers look at how wings affect the flight of planes. An implement that evaluates the degree of flexibility of an elastic component aids in the creation of secure and intelligent items in various domains of industry and commerce.
The terms "structural sway estimator" and "flexibility analysis determiner," although phrased differently, essentially serve the same function and their synonyms carry similar meanings; thus they are not directly substitutable with synonyms. Contextually, the sentence still conveIt is based on well-established structural formulas and principles of material mechanics. Sometimes materials are not perfect, things can get hot or cold, or we might not expect something heavy to change the angle we measure. Specialists frequently employ safety multipliers in their blueprints for accommodating such inconsistencies. Despite calculators providing precise computations, incorporating actual instances and a seasoned engineer's expertise remains essential for completing the blueprints.
- Determine when the beams reach from one end to the other. - Decide on the appropriate type of wood for construction. - Measure the thickness at both the top and bottom of the beam. - Select the type of supports that will hold the beams in place. - List the weights the ' The compute device processes digits to illustrate the extent the beam flexes across different locations. 'Some advanced calculators also generate graphical representations of the bending shape. Crucial for creating sturdy constructions, the tool enables architects and engineers to comply with safety and performance standards, ensuring enduring and solid functionality across varied environments.
