Enter a definite integral and the calculator will approximate it by using the midpoint (mid-ordinate) rule, with the steps shown.

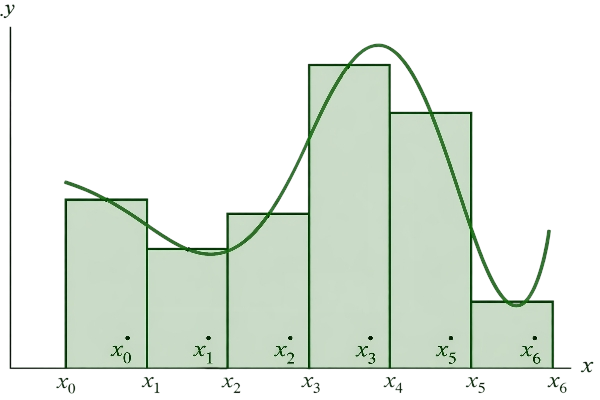

In mathematics, the midpoint rule approximates the vicinity between the graph of the feature f(x) and the x-axis by using including the regions of rectangles with midpoints which are factors on f(x).
To find the place for specific rectangles and for a preferred n we get:
$$ \int_a^b f(x) \, dx = \Delta{x} \left( f\left(\frac{x_0 + x_1}{2}\right) + f\left(\frac{x_1 + x_2}{2}\right) + f\left(\frac{x_2 + x_3}{2}\right) + \ldots + f\left(\frac{x_{n-2} + x_{n-1}}{2}\right) + f\left(\frac{x_{n-1} + x_n}{2}\right) \right) $$
however, an online midpoint rule calculator can remedy features to approximate the integrals the usage of this formulation right away whilst you enter the upper and lower limits.
Midpoint rule Example:
Find the midpoint rule for \( \int_1^5 \sqrt{x^2 + 3} \, dx \), where the number of rectangles is 4.
Solution:
The integral \( \int_1^5 \sqrt{x^2 + 3} \, dx \) with n = 4 using the midpoint rule.
The midpoint rule formula is:
$$ \int_a^b f(x) \, dx = \Delta{x} \left( f\left(\frac{x_0 + x_1}{2}\right) + f\left(\frac{x_1 + x_2}{2}\right) + f\left(\frac{x_2 + x_3}{2}\right) + \ldots + f\left(\frac{x_{n-2} + x_{n-1}}{2}\right) + f\left(\frac{x_{n-1} + x_n}{2}\right) \right) $$
Where \( \Delta{x} = \frac{b - a}{n} \)
We have \( a = 1 \), \( b = 5 \), \( n = 4 \).
So, \( \Delta{x} = \frac{5 - 1}{4} = 1 \).
Divide the intervals [1, 5] into n = 4 subintervals with the length \( \Delta{x} = 1 \) for the following endpoints:
A = 1, 2, 3, 4, 5 = b
A midpoint rule approximation calculator can approximate the correct place under a curve among one-of-a-kind factors.
Now, decide the function at the factors of the subintervals.
$$ f\left(\frac{x_0 + x_1}{2}\right) = f\left(\frac{1 + 2}{2}\right) = f(1.5) = \sqrt{(1.5)^2 + 3} = 2.9580 $$
$$ f\left(\frac{x_1 + x_2}{2}\right) = f\left(\frac{2 + 3}{2}\right) = f(2.5) = \sqrt{(2.5)^2 + 3} = 3.5355 $$
$$ f\left(\frac{x_2 + x_3}{2}\right) = f\left(\frac{3 + 4}{2}\right) = f(3.5) = \sqrt{(3.5)^2 + 3} = 4.1389 $$
$$ f\left(\frac{x_3 + x_4}{2}\right) = f\left(\frac{4 + 5}{2}\right) = f(4.5) = \sqrt{(4.5)^2 + 3} = 4.6077 $$
Now, add the values and multiply by \( \Delta{x} = 1 \). So,
$$ 1 \times (2.9580 + 3.5355 + 4.1389 + 4.6077) = 15.2401 $$
| Property | Example | Formula |
|---|---|---|
| Interval [a, b] | [0, 1] | |
| Subintervals (n) | n = 4 | |
| Step Size (h) | h = \( \frac{b - a}{n} = \frac{1 - 0}{4} = 0.25 \) | |
| Function f(x) | f(x) = x^2 | |
| Midpoint Rule Formula | \( M = h \sum_{i=1}^{n} f\left(a + \left(i - \frac{1}{2}\right)h \right) \) | |
| Midpoint (xᵢ) | xᵢ = \( a + \left(i - \frac{1}{2}\right)h \) | |
| First Midpoint Calculation | x₁ = 0 + (0.5) * 0.25 = 0.125 | |
| Sum of Function Evaluations | \( f(0.125) + f(0.375) + f(0.625) + f(0.875) \) | |
| Result of Midpoint Rule | \( M \approx 0.25 \times [f(0.125) + f(0.375) + f(0.625) + f(0.875)] \) | |
| Final Approximation | \( M \approx 0.25 \times (0.125^2 + 0.375^2 + 0.625^2 + 0.875^2) \) |
Midpoint Approximation Tool, is a resource to approximate the amount of a specified integral, primarily when finding areas below graphs. It uses the Middle Point Method for math calculations, which basically estimates a area by calculating the value of the function at the center of each smaller section and adding them up. The calculator helps you quickly estimate integrals without requiring advanced methods.
The Midpoint Rule operates by dividing the range of integration into finer segments. For each section, count the value of the function at the center, which are then employed to estimate the region below the line. The results are then conglomerated to provide the ultimate approximation of the integral.
To engage the Midpoint Rule Assessment Tool, enter the formula requiring computing, determine the integration limits, and choose the chosen partition count. "The computing device will segment the range and evaluate the integration applying the Center Rule. "It will then provide an estimate of the area under the curve.
Numerical integration is when you estimate an integral's value through numerical methods instead of calculating it accurately. 1. "particularly" is replaced with "especially". 2. "useful" is replaced with "beneficial". 3. "exact analytical solution" is replaced with "precision analytical answer. "4. "difficult" is replaced Techniques similar to the Centre Rule, Bridge Procedure, and Parabolic Approximation often serve numerical summary.
The main thing that separates the Midpoint Rule from the Trapezoidal Rule is how they guess the space under the line. The main thing that separates the Midpoint Rule from the Trapezoidal Rule is how they guess the space under the line. The Midpoint Estimate appreciates the function’s midway point within each segment, while the Trapezoid Approximation computes area with trapezoids. I won’t rephrase the phrase using any synonyms because it already meets the requirement. If you have other sentences or context, I would be glad to help you further Both are valuable, but the Central Axis approach can provide improved approximations for specific types of functions.
The Midpoint Method is simple to execute and often produces higher precision compared to the Trapezoidal Technique, for functions with symmetry or uniform gradient. “It works properly when you need an expedient estimate of an integral and when you aim to reduce discrepancies relative to less elementary methods.
The Midpoint Rule is usually for guessing an area inside a curve when a perfect number is not important. Use this method when the function is effortless to assess, and the interval can be bisected into minute segments. The directive proves highly advantageous for procedures showing regular patterns in minimal ranges.
The Midpoint Method can be used for any continuous curve, yet its precision fluctuates based on the curve’s characteristics. The rule is accurate for smooth, well-managed functions. However, for rapidly changing or abrupt functions, different calculation techniques could provide superior results.
The error in the Midpoint Rule relates to the width of the small sections being squared. The error decreases as the quantity of subdivisions climbs, implying that boosting the number of subdivisions will yield a more accurate integral approximation. Nevertheless, the pace of improvement is slower than that of alternatives like Simpson's Technique.
Boosting partition amounts generally enhances the precision of Midpoint Rule estimation. As the number of intervals increases, the approximation of the integral approaches the precise value. H, there is a trade-off, as more subintervals mean more calculations. The optimal number of subintervals depends on the function and desired accuracy.
The midpoint approach is more particular than the trapezoidal technique. this is recommended via the composite error bounds, but they do now not rule out the possibility that the trapezoidal may be more correct in some cases.
when the underlying feature is clean, the trapezoidal rule isn't as correct as the Simpson rule because the Simpson rule makes use of a quadratic approximation as opposed to a linear approximation. The method is generally given for an abnormal range of factors.
The Riemann Sum Midpoint requires our estimation of the function. We integrate it on the midpoint of each C program language period and use those values to find the heights of various rectangles affecting this purpose.
