Provide the forces and angles of at least 2 forces to this resultant calculator and calculate the resultant force instantly.
it's far the sum of all of the forces which can be acting on a body and is likewise known as the internet pressure. As we understand the force is a vector quantity, and the resultant pressure has importance and direction. that is the pressure that produces acceleration.
Scenario: suppose a vehicle is being pushed with two forces:

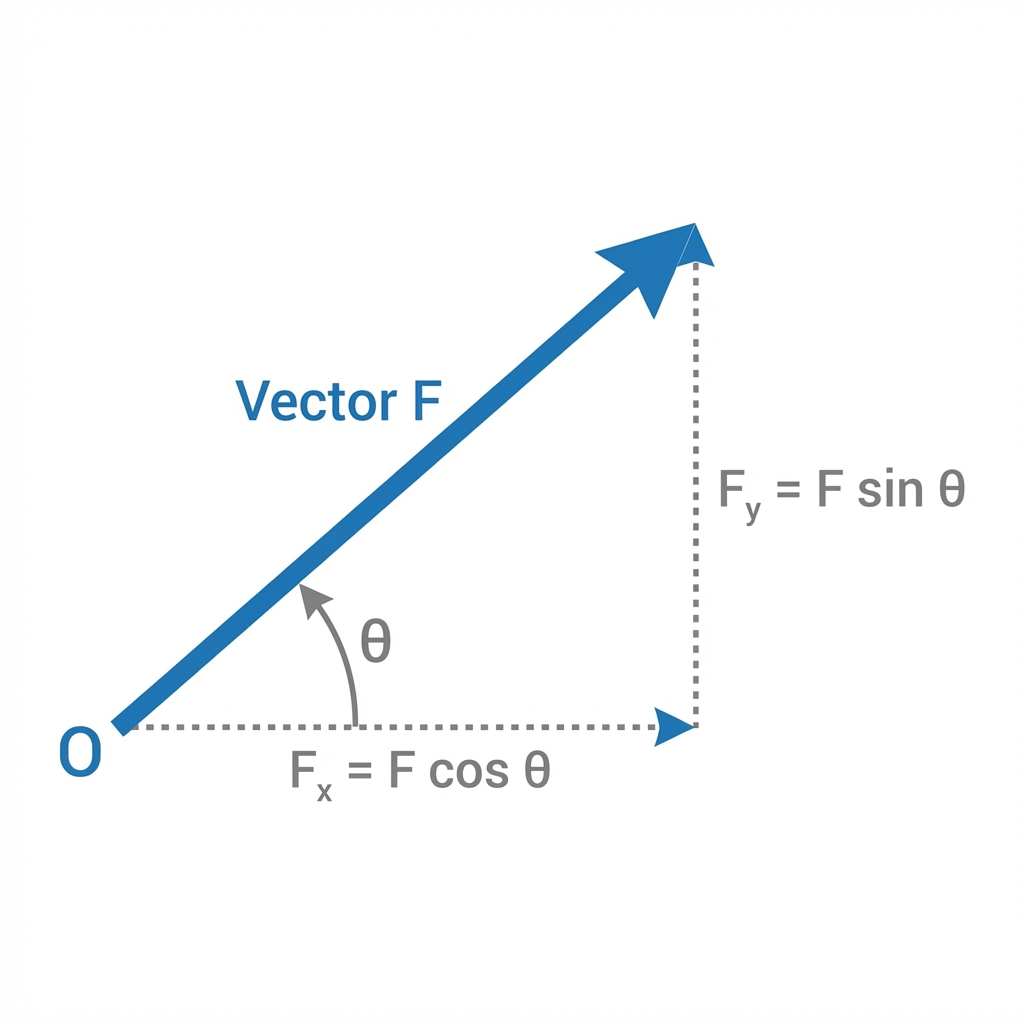

Step 1: Resolve the forces into their components:
For Force 1 (\(F_1 = 15 \, \text{N}\)): \[ F_{x1} = F_1 \cdot \cos(0^\circ) = 15 \cdot 1 = 15 \, \text{N} \] \[ F_{y1} = F_1 \cdot \sin(0^\circ) = 15 \cdot 0 = 0 \, \text{N} \]
For Force 2 (\(F_2 = 10 \, \text{N}\)): \[ F_{x2} = F_2 \cdot \cos(90^\circ) = 10 \cdot 0 = 0 \, \text{N} \] \[ F_{y2} = F_2 \cdot \sin(90^\circ) = 10 \cdot 1 = 10 \, \text{N} \]
Step 2: Calculate the net components of the resultant force:
Net horizontal force (\(\Sigma F_x\)): \[ \Sigma F_x = F_{x1} + F_{x2} = 15 + 0 = 15 \, \text{N} \]
Net vertical force (\(\Sigma F_y\)): \[ \Sigma F_y = F_{y1} + F_{y2} = 0 + 10 = 10 \, \text{N} \]
Step 3: Calculate the angle of the resultant force:
The angle (\(\theta\)) of the resultant force is given by: \[ \theta = \tan^{-1} \left(\frac{\Sigma F_y}{\Sigma F_x}\right) \] Substitute the values: \[ \theta = \tan^{-1} \left(\frac{10}{15}\right) = \tan^{-1}(0.67) = 33.69^\circ \]
Step 4: Calculate the magnitude of the resultant force:
The magnitude (\(R\)) is calculated using the Pythagorean theorem: \[ R = \sqrt{(\Sigma F_x)^2 + (\Sigma F_y)^2} \] Substitute the values: \[ R = \sqrt{(15)^2 + (10)^2} = \sqrt{225 + 100} = \sqrt{325} = 18.03 \, \text{N} \]
Final Result:
If calculating resultant forces and angles seems challenging, consider using a direction angle calculator to simplify the process.
| Property | Description |
|---|---|
| Definition | The resultant force is the single force that has the same effect as multiple individual forces acting together. |
| Formula | FR = √(F₁² + F₂² + 2F₁F₂ cosθ) |
| Units | Force is measured in Newtons (N). |
| Purpose | Used to find the net force acting on an object when multiple forces are applied in different directions. |
| Example Calculation | If F₁ = 10N, F₂ = 15N, and the angle θ between them is 60°: FR = √(10² + 15² + 2(10)(15)cos60°) FR = √(100 + 225 + 150) = √475 FR ≈ 21.79N |
| Vector Addition | For forces acting at different angles, vector addition is used to find the resultant force. |
| Applications | Used in physics, engineering, mechanics, and robotics to determine net force on objects. |
| Equilibrium | If the resultant force is zero, the object remains in equilibrium, meaning no acceleration occurs. |
| Components of Force | Forces can be broken down into horizontal and vertical components to simplify calculations. |
| Newton’s Laws | The resultant force determines an object’s motion based on Newton's Second Law (F = ma). |
As Newton's first regulation states, the internet pressure is zero if an object is both at relaxation or moving in a immediately line with a regular velocity. utilize a importance of resultant pressure calculator physics to determine the net pressure as it should be.
The motive for calculating resultant force is that it allows us to think of all the forces acting on an item as one unmarried force. It way to understand the effect that the forces had at the object.
in keeping with the parallelogram law of vector addition, the resultant vector R = ( A2+B2+2AB(theta)). A and B are the representatives of the vectors.
The Resultant Force Calculator figures out the total push or pull on something when different pushes or pulls are tried on it at the same time. It considers both magnitude and direction to compute the single equivalent force. The resultant force is very important in physics and building things because it shows what makes an object move in line with Newton’s rules. This tool simplifies complex force vector calculations, saving time and reducing errors.
The outcome force decides if an item stays still, moves evenly, or speeds up. In line with Newton's Second Principle, an unbalanced aggregated force induces speed change, but matched forces maintain an item at rest or constant movement. It is essential for comprehending motion principles, car operations, and engineering blueprints.
Absolutely, when forces equalize, their total equates to nil, resulting in a zero aggregate. This situation is called balance. It means that the object doesn't move or keeps moving at the same speed without speeding up or slowing down. An absence of summed force is crucial in construction design, where equal forces maintain equilibrium.
Direction plays a vital role in determining the resultant force. When vectors operate in parallel, they merge, escalating the aggregate tension. Opposing forces partially or completely cancel each other, reducing the resultant force. When forces come from different directions, we use math to figure out their total impact.
An outcome force symbolizes the entire impact of all applied thrusts. A uniform force denotes no remaining thrust, maintaining the subject in stasis. If there are unbalanced forces acting on an object, there will be a net force causing the object to start moving, stop, speed up, or change direction. This is what Newton's laws tell us.
Architects apply cumulative force computations in crafting constructions, transportation units, and devices to guarantee accurate application of force spread. In construction, bridges and buildings must withstand forces without collapsing. Grasping consequences forces boosts automobile making, wind resistance, and obstacle survival for security.
That means the final push or pull is like one bigger force that does the same thing as several smaller ones teaming up. It simplifies force analysis, especially in physics problems and engineering applications. Using one force instead of many can simplify math and helps in understanding how things move and create systems.
Newton’s Second Law states that force equals mass times acceleration (. 𝐹. =. 𝑚. 𝑎. F=ma). The resultant force determines the object’s acceleration by considering all acting forces. If the resultant force is zero, there is no acceleration. If the object is not still, it will start to move faster in the direction of the push or pull force, changing how it moves.
