Please provide any two values and the calculator will calculate the sector area, central angle, radius, diameter, arc length, and chord length of any circle sector.
“A particular figure that is bounded with the aid of an arc connecting with one quit of two radii one at a time is referred to as region of a circle”
The region of zone calculator unearths all of the above noted values in a span of time to shop your valuable time.
Right here we will be discussing a few formulation that are used to locate these geometrical phrases. those encompass:

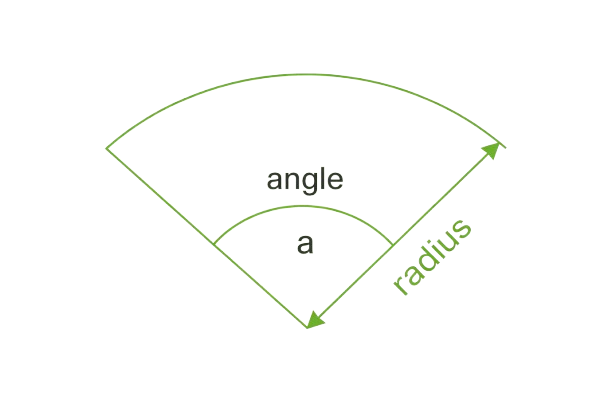

vicinity Of area components:
you could without problems decide the location of a area of a circle with the help of zone vicinity method given under:
$$ \text{Area Of Sector} = \frac{\alpha * r^{2}}{2} $$
Where:
\(\alpha\) = angle of a sector
r = radius of the arena
Arc duration formula:
you could use the subsequent components to decide the length of any arc of the arena:
$$ \text{Arc Length} = \theta * r $$
Chord length components:
under is the most optimized system to decide the chord duration of the world of a circle.
$$ \text{Chord Length} = 2*r*sin\frac{\theta}{2} $$
Right here if you ever get stuck at some point of calculations of those portions, strive the use of the unfastened on-line area of a sector calculator. you may always get accurate solutions concerning every term which you desire to discover.
Let us remedy more than one examples that will help you in better know-how of the idea.
Example # 01:
The radius of a circle area is five cm. The inner perspective of the world is \(60^\circ\). How are we able to find the region of the sector?
Solution:
First, we need to convert the attitude given in levels to radians:
$$ \theta_{rad} = \frac{\text{Angle In Degrees} \times \pi}{180} $$
$$ \theta_{rad} = \frac{60^\circ \times 3.14}{180} $$
$$ \theta_{rad} = \frac{188.4}{180} $$
$$ \theta_{rad} = 1.047 \, \text{rad} $$
Now, using the formula for the area of a sector of a circle:
$$ \text{Area of Sector} = \frac{\alpha \times r^{2}}{2} $$
Substitute the given values:
$$ \text{Area of Sector} = \frac{1.047 \times \left(5\right)^{2}}{2} $$
$$ \text{Area of Sector} = \frac{1.047 \times 25}{2} $$
$$ \text{Area of Sector} = \frac{26.175}{2} $$
$$ \text{Area of Sector} = 13.09 \, \text{cm}^2 $$
you may also calculate the same end result quick with a loose location of zone calculator, simplifying your calculations effortlessly.
The area of a sector of a circle is the part covered by two straight lines (radii) and the curved line (arc) that connects them. It represents a fraction of the total circular area.
“It helps in different practical scenarios such as computing the space of pizza pieces, fashioning fan leaves, and delineating territories with circular segments.
To determine the area, you need the radius of the circle and either the central angle measured in degrees or the arc measurement.
A sector area is always a positive value because it measures a part of space within a circle.
A small part (minor sector) has a tip (central angle) smaller than a straight line (180°), while a large part (major sector) has a tip (central angle) larger than a straight line (180°).
A bigger angle at the center makes a bigger middle part of the circle, so more of the circle’s space is covered.
Architects, engineers, and designers use it for measuring, making floor plans for circles in gardens, planning building pieces, and figuring out parts of machines.
If the arc length is established, the area can be calculated using the relationship between the arc and the circle’s perimeter to determine the sector’s fraction.
Yes, a half-circle is a specific instance of a segment with a straight angle of 180°, thus equating it to exactly one-half the space of the whole circle.
The segment’s region constitutes a portion of the entire circle’s expansion, variing with the proportion of its core angle compared to a complete 360° round.
Yes, if you know the chord length and the central angle, you can calculate the radius and then use it to calculate the sector area.
If the central angle stretches 360°, the sector occupies the whole circle, meaning the area of the sector matches the entire area of the circle.
Calculations for areas of sectors help in preparing tracks for races, organizing circular zones for play, and defining edge limits for stadiums.
The boundary of a sector consists of two radii and the curved segment, while the region is determined solely by the radius and the central angle.
“No, the greatest extent a sector can reach is as big as the extent of a complete circle, occurring at 360° central angle.
It is essentially the ratio of the circle’s circumference to its diameter
$$ π = \frac{\text{Circumference Of The Circle}}{Diameter} $$
