Capacitance Calculator

Capacitance?

“it is the capability of a capacitor to store charge”

The capacitance of a capacitor is usually depending on two elements that consist of:

• Dielectric medium
• Distance between the capacitor plates

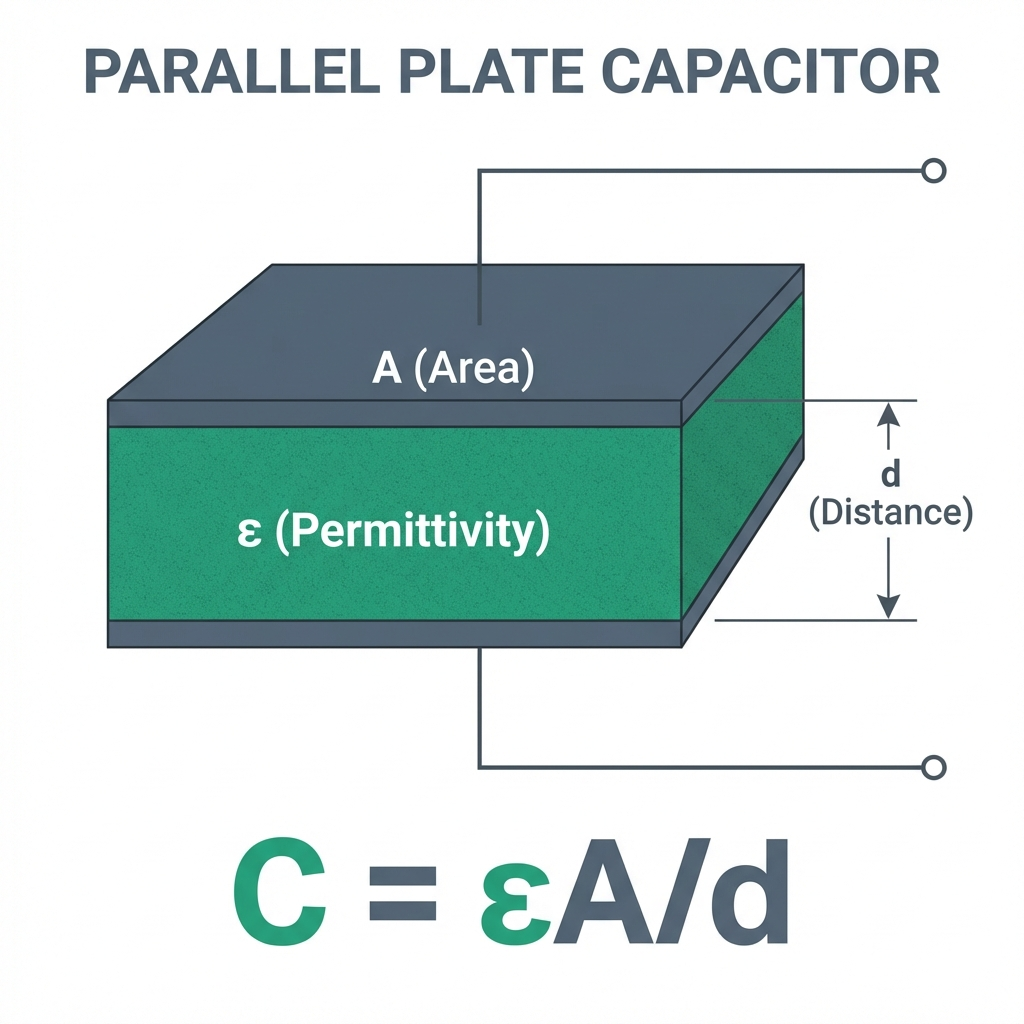

Parallel Plate Capacitor method:

Our parallel plate capacitor calculator makes use of the same old equation to calculate capacitor capacitance. but, in case your intention comes up with manual calculations, follow the method:

Capacitance = ​ε Area / Distance Or C = ε A / s

wherein;

ε = 8.854 pF / m

The above permittivity price is the usual that is used utilized by this capacitor capacitance calculator without a particular capacitance entered.

The way to locate Capacitance?

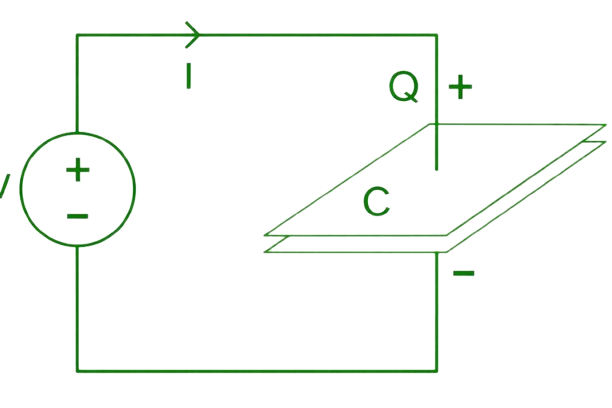

Essentially, capacitance is the ratio of the rate in a capacitor to the voltage throughout its plates. let us figure out via an instance!

Announcement:

If the area occupied by the capacitor plates is ready 125 mm^2 and the separation among plates is ready 7 mm, then how to calculate capacitance? (The relative permittivity of area is ready zero.000124 F/m.)

Solution:

the usage of the parallel plate capacitance system::

C = ε A / s

C = (0.000124 F/m * 125 mm^2) / 7mm

C = 0.0155 / 7 C = 0.00221 Farads

that is the specified capacitance at which the parallel plate capacitor will work commonly with out trouble.

Faqs:

What Is The Value of K In Capacitance?

• For free space, k=1
• For all other media, k>1

To accurately calculate capacitance with any value of k, you may better let this capacitance calculator do all maths for you.

what is a everyday Capacitance?

The regular capacitance price stages commonly from 1nF to 1µF.

What is capacitance, and how is it measured.

Capacitance is the ability of a capacitor to store electrical charge. It's measured in units called farads (F), standard smaller amounts include microsfarads (µF), nanofarads (nF), and picofarads (pF). "Capacitance is related to the amount of stored charge versus the applied voltage in a system. Capacitors play a significant role in powered circuits, minimizing interference, and altering signals. " Capacitance depends on the size of the plates, the distance between them, and what material separates them.

How does a capacitance calculator work.

The capacitance measuring apparatus helps in assessing the storage capability of a capacitor using the formula. C = ε₀ × εr × A / d, where.

C = Capacitance (Farads). ε₀ = Permittivity of free space (8. 85 × 10⁻¹² F/m). εr = Relative permittivity (dielectric constant). A = Plate area (square meters). d = Distance between plates (meters). "Inserting these figures, this device offers precise energy storage estimations, beneficial for assembling computer systems. "What factors affect the capacitance of a capacitor. Several factors determine a capacitor’s capacitance.

Plate Area (A): Larger plates store more charge, increasing capacitance. Distance Between Plates (d): Smaller gaps between plates result in higher capacitance. Dielectric Material (εr): A higher dielectric constant increases capacitance. Temperature: Some dielectrics change properties with temperature variations, affecting capacitance. Using it outside its limits can damage it and make it worse. How do different capacitor types impact capacitance. Various capacitor types have different properties.

Ceramic Capacitors: Small, stable, and used for high-frequency applications.

Extremely large holding capacity but one-way use, require proper orientation. Tantalum Capacitors: More stable than electrolytic but expensive. Film Capacitors: Used in power circuits due to durability. Supercapacitors: Extremely high capacitance for energy storage applications. The appropriate capacitor variety relies on the device’s power level, frequency, and stability requirements. Why is capacitance important in electronic circuits. Capacitance plays a crucial role in various electronic applications.

Holds electricity for short time and even out electricity changes.

Helps in electronic devices to smooth out unstable power. Timing Circuits: Capacitance and resistance determine circuit timing in oscillators and timers. Bypass DC, let AC signals through in amplifiers. Resonant Circuits: Works with inductors in frequency-dependent applications like radios. Understanding capacitance helps in designing efficient and reliable electronic circuits.
