Residual Calculator

Enter the independent and dependent variable in the tool and the calculator will find the residual value.

Add calculator to your Website

The residual calculator calculates the residual of the independent variable (X) and dependent variable (Y) on the basis of linear regression. The online residual point calculator can evaluate the error in the regression analysis.

What is the Regression Residual?

The regression residual is the difference between the observed and predicted values in the regression model of the dataset. The residual calculator provides accuracy and precision of the estimated results. Actually, the residual find the margin of error of the dataset values by drawing the difference between the actual and forecasted values.

How to Calculate the Residual?

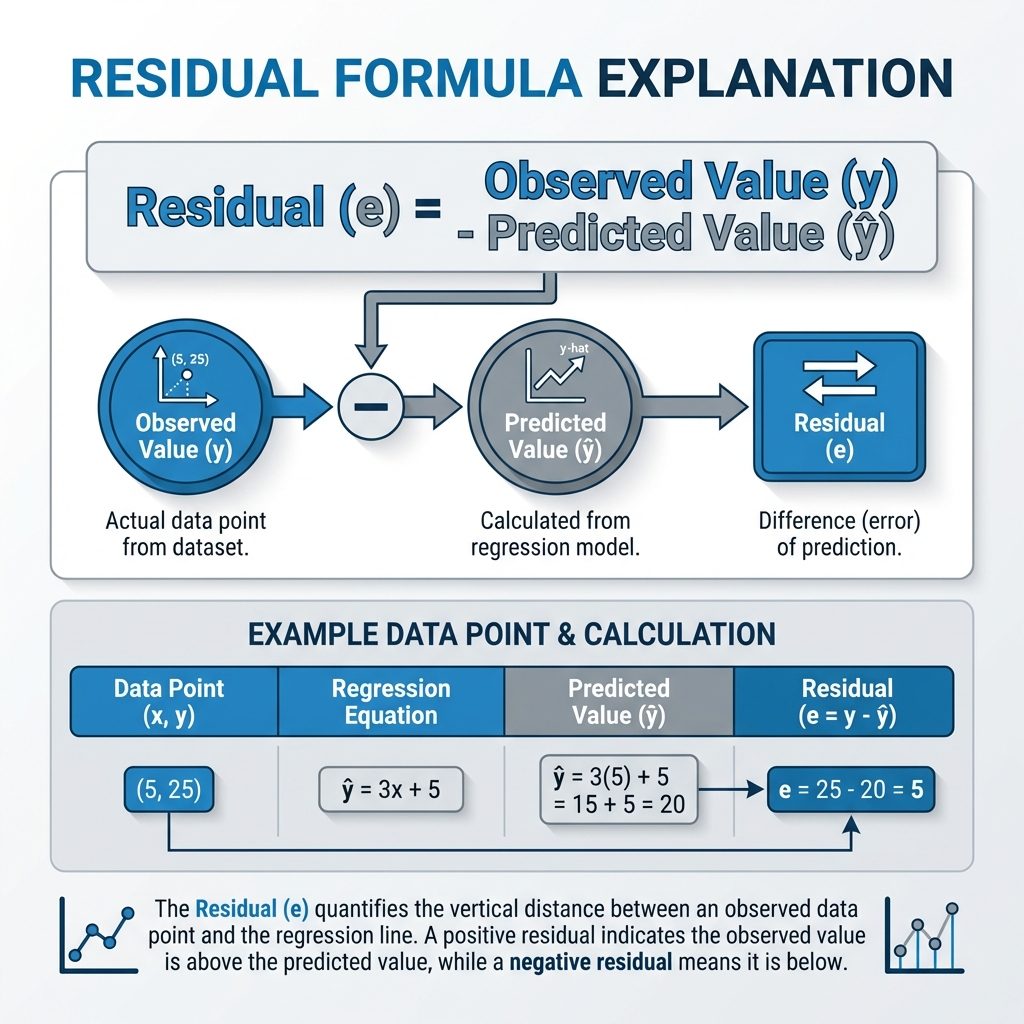

The formula for the residual in statistics is given below:

Residual = Observed value – Predicted value

Where: Observed value = The actual values of the variable Predicted value = The expected values of the variable The residual graph calculators make sure what is the variance and the drift in the statistical data.

Practical Example:

Now understand the concept of the residual by the practical example: Let's suppose there is a set of independent variables 1, 13, 5, 7, 9 and dependent variables 2, 4, 6, 18, and 10. Now the residuals for each observation in a simple linear regression model are given below:

Solution:

Dependent and Independent Variables:

The data set values for the dependent and independent variables are:

Obs.	X	Y
1	1	2
2	13	4
3	5	6
4	7	18
5	9	10

The Regression Coefficient:

Now, construct the estimated regression coefficient using the values of the predicted and response variables:

Obs.	X	Y	Xᵢ²	Yᵢ²	Xᵢ · Yᵢ
1	1	2	1	4	2
2	13	4	169	16	52
3	5	6	25	36	30
4	7	18	49	324	126
5	9	10	81	100	90
Sum =	35	40	325	480	300

The Sum of the Squares Values:

The sum of the square generated from the above table are:

\[SS_{XX} = \sum^n_{i-1}X_i^2 - \dfrac{1}{n} \left(\sum^n_{i-1}X_i \right)^2\]

Now by step by step-by-step calculation: = 80

\[SS_{YY} = \sum^n_{i-1}Y_i^2 - \dfrac{1}{n} \left(\sum^n_{i-1}Y_i \right)^2\] = 160

\[SS_{XY} = \sum^n_{i-1}X_iY_i - \dfrac{1}{n} \left(\sum^n_{i-1}X_i \right) \left(\sum^n_{i-1}Y_i \right)\] = 20

The Slope of the Line:

\(hat{\beta}_1 = \dfrac{SS_{XY}}{SS_{XX}}\) \(= \dfrac{20}{80}\) \(= 0.25\)

\(hat{\beta}_0 = \bar{Y} - \hat{\beta}_1 \times \bar{X}\) \(= 6.25\)

\(hat{Y} = 6.25 + 0.25X\)

The Predicted Values:

After finding the regression equation, we can gather the predicted values by inserting the independent variable in the regression equation.

\(hat{Y} = 6.25 + 0.25X\)

The Residual Values:

The predicted and residual values are given in the table below:

Obs.	X	Y	Predicted Values	Residuals value=(Y-P.V)
1	1	2	6.25 + 0.25 × 1 = 6.5	2 - 6.5 = -4.5
2	13	4	6.25 + 0.25 × 13 = 9.5	4 - 9.5 = -5.5
3	5	6	6.25 + 0.25 × 5 = 7.5	6 - 7.5 = -1.5
4	7	18	6.25 + 0.25 × 7 = 8	18 - 8 = 10
5	9	10	6.25 + 0.25 × 9 = 8.5	10 - 8.5 = 1.5

Working of Residual Calculator:

The online statistics residual calculator requires the values of the “X” and “Y” variables: Let’s find out how!

Input:

Enter the dependent and independent variables
Tap Calculate

Output:

The regression residual
Step by Step calculations

FAQs:

Why Use the Residual Value?

The residual values are a good way to know the quality of the sample data. The main reason is that you are comparing the actual values with the expected values of certain phenomena. The online statistics residuals calculator increases the quality of the regression analysis.
