Enter the values to find how much gravel you need for your construction project along with its amount.
This gravel calculator finds how lots gravel you want to cowl a preferred square or circular location to a sure depth. also, it takes price in keeping with unit to calculate the total quantity of gravel (aggregate) you require for your production assignment.
There are two ways to determine the amount of gravel required to cover an area:
To understand the amount of gravel needed, it's important to decide each the volume of the space (region) and the weight of the cloth. This volume guarantees you have enough cloth to cover the complete space. And, the burden of the gravel is useful for other purposes, including calculating shipping prices, and many others.

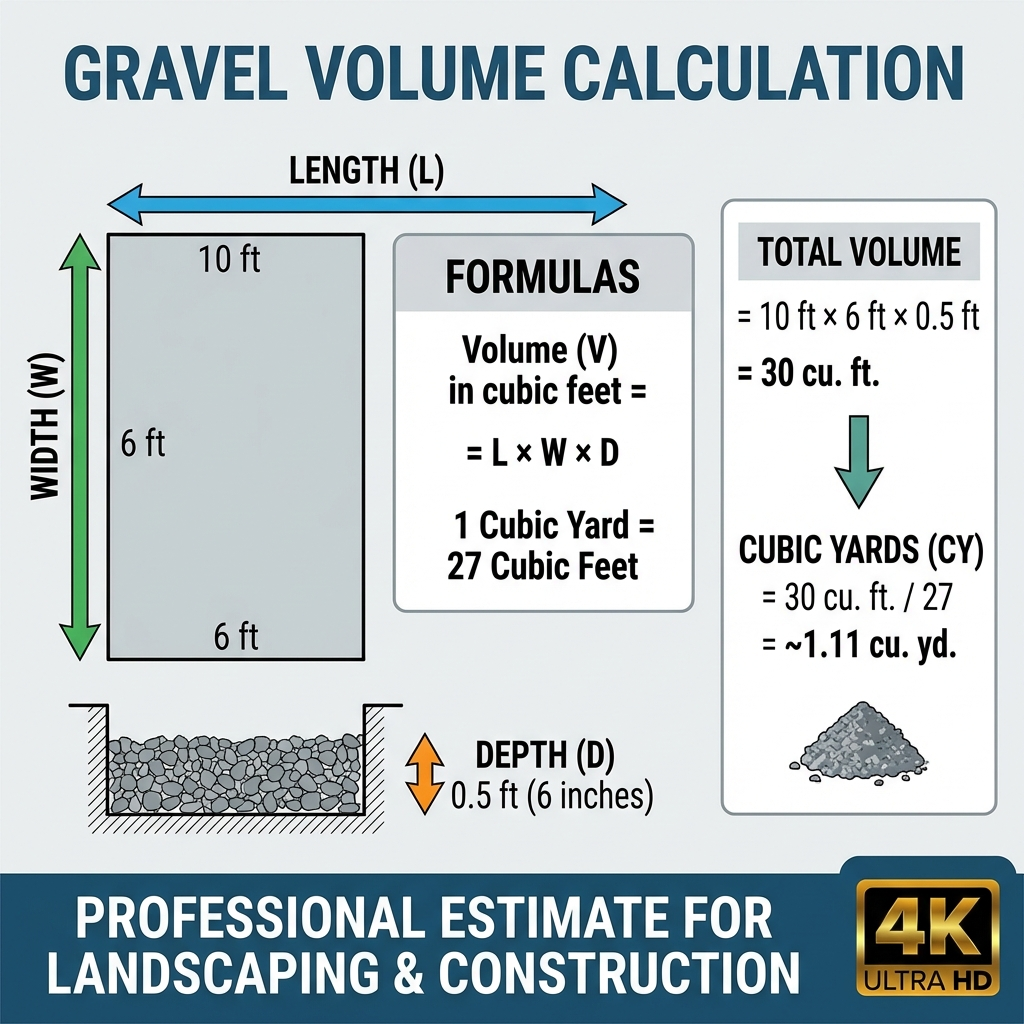

Volume:

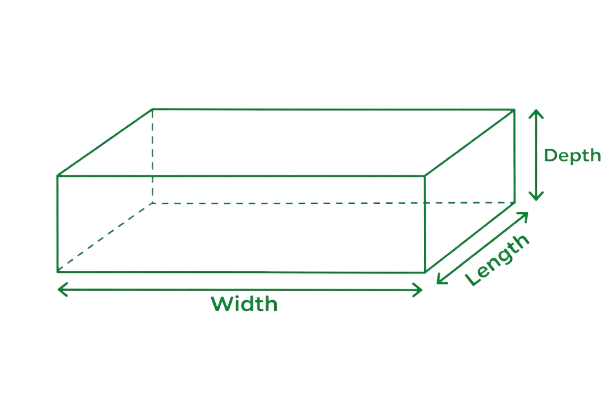

The volume of A rectangular or square area:
\(\text{Volume of Rectangular = Length x Width x Depth}\)
Volume of a Circular Space:
\(\ 3.14\ \times ( \frac{diameter}{2}) ^ {2} \ \times depth\)
Gravel Weight:
\(\text{Weight = Volume (cubic yards) x Density (cubic yards)}\)
Note: Make sure to use the same units for all measurements.
think you have to work on a square driveway with a period of 20 toes, a width of 10 toes, and a favored depth of five inches. The gravel you need to apply has a density of 104.88 lb/feet³. And, the price of the gravel per ton is $one hundred. find out how an awful lot gravel (extent & Weight) you need to finish the assignment and the estimated value of gravel.
Solution:
Given that:
By Adding Values In The Volume Formula:
\(\text {Volume = 20 ft x 10 ft x 0.416667 ft}\)
\(\text {Volume = 20 ft x 10 ft x 0.416667 ft}\)
\(\text {Volume = 83.3334 ft³}\)
Calculate Gravel Weight:
1 ton = 2000 lb
\(\ Weight =\frac{Volume (cubic\ feet)\times\ \ Density(in\ lb/ft³)}{2000}\)
\(\ Weight =\frac{83.3334\ \times\ \ 104.88}{2000}\)
\(\ Weight =\ 4.370003496\ tons \)
Calculate The Cost:
\(\text{ Cost = Weight (tons) x Price per ton}\)
\(\text{Cost = 4.370003496 tons x 100 = $ 437.0003496 ≈ $ 437}\)
Cost ≈ $ 437
Right here, you could additionally attempt a gravel cost calculator that takes the charge in keeping with unit of gravel and calculates the total fee.
Remember that:
1. Cost Effectiveness:
2. Functionality:
3. Aesthetics:
The usage of too much gravel for a driveway project will supply a cumbersome and overwhelming look. alternatively, in case you use much less amount, then it's going to look unfinished and sparse.
4. Safety:
The proper depth of gravel is vital to shape a strong floor. using too little quantity of gravel can create unevenness and may be a reason for capability protection dangers that is why it's far important to apply the right amount of gravel in your mission. using a gravel calculator may be very useful in purchasing the most fulfilling amount of gravel to your needs, decreasing the hazard of overspending or jogging out of materials.
A cubic backyard of gravel weighs among 2200 to 2900 kilos. There are multiple motives in the back of the variation including:
The location protected through a ton of gravel relies upon on the intensity of the gravel. As a popular estimate, one ton of gravel can cover:
It's vital to keep in mind that the real coverage may be slightly tormented by the scale of the gravel.
The perfect intensity of the gravel depends upon its application. but, a minimum intensity variety of two - four inches is ideal to function a baseline. while some programs may additionally require greater or much less depth of the gravel.
Crushed Rock insurance in keeping with Ton:
Material |
Suggested Depth | Coverage Area per 1 ton |
3”-8” rock | 3”-8” |
60 square feet |
1”-3” rock |
1”-3” | 80 square feet |
3/4”-1” screened gravel | 2” |
100 square feet |
5/8”-1/2” screened gravel |
2” | 120 square feet |
1/4-3/8” screened gravel | 2” |
140 square feet |
