Gear Ratio Calculator

What is Gear?

A gear is a rotating mechanical component with teeth designed to transmit power and motion by meshing with other gears or toothed parts. By using gears, you can change the rotational speed, direction, and torque that is applied to it.

What is Gear Ratio?

"The ratio between the rotational speed of the final and the initial gear"

The Gear ratio communicates the degree of speed alteration and the torque variation experienced by the output gear in the system. It enables you to know how fast your vehicle can go in each gear at different engine RPMs for top performance.

• A high gear ratio will result in a slower speed but higher torque.
• A low gear ratio will result in a higher speed but lower torque.

How To Calculate Gear Ratio?

Below are the gear ratio equations to calculate the gear ratio so, follow these for manual calculation.

Gear Ratio Equations:

Gear ratio can be calculated in several ways depending on the known parameters of the gear system.

Formula #1: Using Circumference

$$ \text{Gear Ratio} = \frac{\pi \cdot D_\text{input}}{\pi \cdot D_\text{output}} $$

Formula #2: Using Diameters

$$ \text{Gear Ratio} = \frac{D_\text{input}}{D_\text{output}} $$

Formula #3: Using Radii

$$ \text{Gear Ratio} = \frac{R_\text{input}}{R_\text{output}} $$

Formula #4: Using Gear Teeth and Thickness/Spacing

$$ \text{Gear Ratio} = \frac{N_\text{input} \cdot (t + s)}{N_\text{output} \cdot (t + s)} $$

Where \( N \) = Number of Teeth, \( t \) = Gear Thickness, \( s \) = Teeth Spacing

Formula #5: Simplified Teeth Ratio

$$ \text{Gear Ratio} = \frac{N_\text{input}}{N_\text{output}} $$

---

Gear Ratio Example:

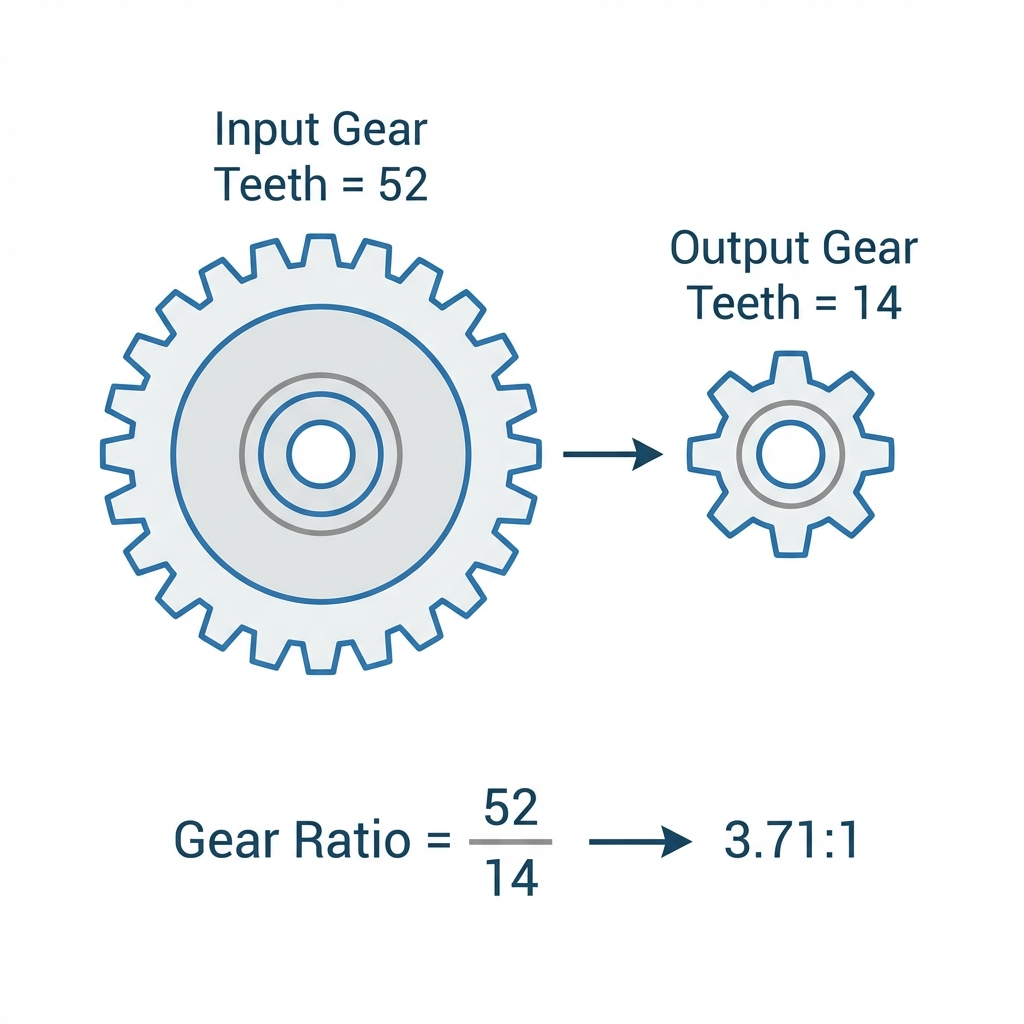

Suppose a two-gear system where the pinion gear has 52 teeth and the ring gear has 14 teeth. Find the gear ratio:

$$ \text{Gear Ratio} = \frac{N_\text{input}}{N_\text{output}} = \frac{52}{14} \approx 3.71:1 $$

This means the pinion-to-ring gear ratio is 3.71:1, which determines the relative speed and torque transmitted between the gears.

Gear Ratio Chart:

Steps To Utilize The Calculator:

The gear ratio calculator finds the rate of mechanical advantage or disadvantage a gear train produces in the gear system.

Required Values:

For Simple Mode:

• Enter input and output gear teeth number
• Likewise, enter the rotational speed and torque
• At the end, hit the calculate button

For Advanced Mode:

• Enter the Engine RPM (Revolutions per minute), Axle Ratio, and Tire height in respective fields
• Likewise, enter the Tire Width, Wheel Diameter, and Aspect Ratios in their designated fields
• After you are done, hit the calculate button

Final Results:

• The gear ratio
• Mechanical advantage
• Rotational speed and torque of gear axle
• Width and height of the tire
• Miles Per Hour (MPH) for a gear speed

Additional Querries:

What is a good gear ratio?

Normally, the gear ratio lower than 4.56 is considered better for smooth running of the gear, and thus the whole machine. If you want your ride to run without no knocking sound, then you should keep utilising this online gear ratio rpm calculator to keep an idea of your ride’s good performance.

Which gear ratio provides best fuel economy?

To drive heavier truck like vehicles, you must go for choosing a low gear ratio as 3.0, 3.23, or 3.31. But when it comes to the city cars, the axle ratio is not so affected by the MPG.
