Spring Constant Calculator

What Is Spring Constant?

“A particular quantity representing the stiffness of a spring is known as the spring constant”

Let us define the basic hooke's law that gives us the definition of the spring constant.

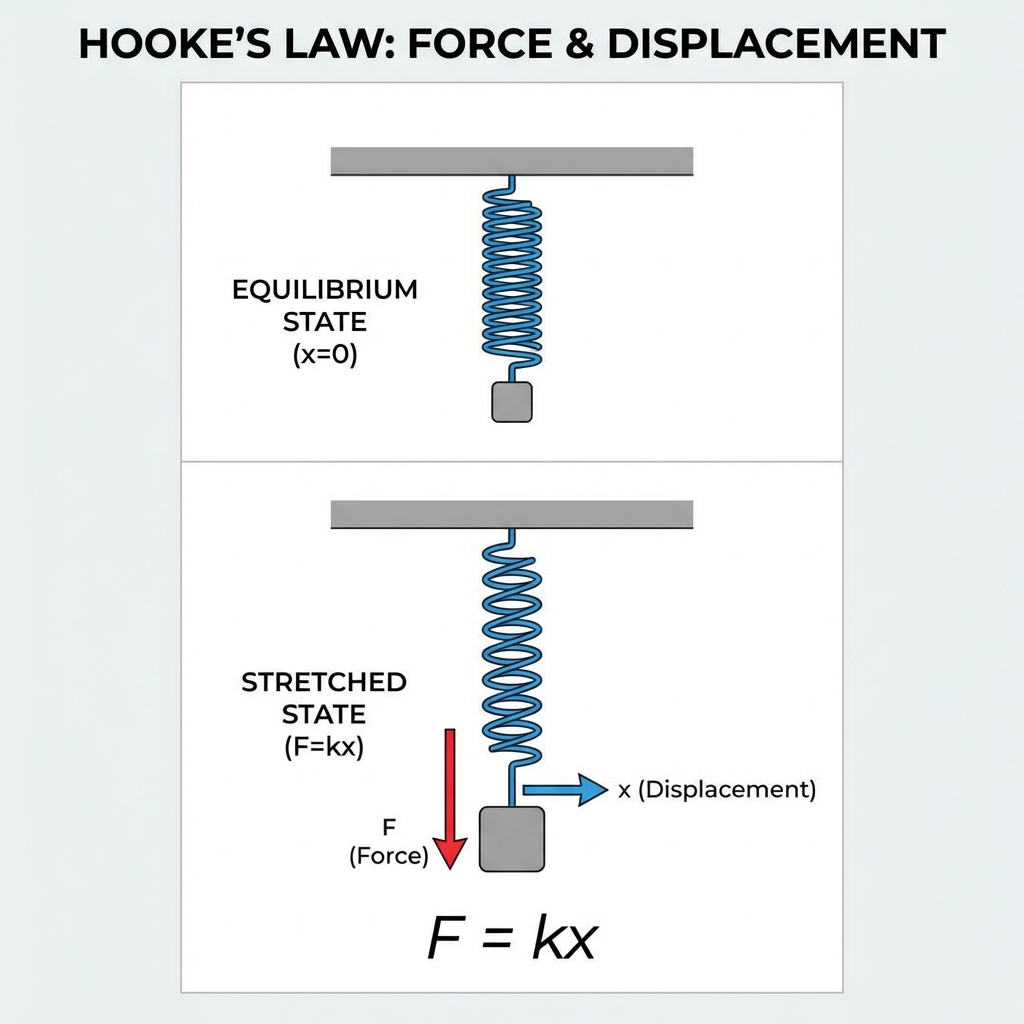

Hooke’s Law:

This law states that:

“The restoring force by the spring is directly proportional to the change in the position and is directed towards the mean position”

Spring Constant Formula:

Hooke’s law provides the following expressions for springs:

\[ \text{Force: } F = k \cdot \delta x \] \[ F = -k \, \delta x \] \[ k = -\frac{F}{\delta x} \] \[ \delta x = -\frac{F}{k} \]

Where:

• \(F\) = Restoring force of the spring
• \(\delta x\) = Displacement of the spring from its equilibrium position
• The negative sign indicates that the force is directed opposite to the displacement, back toward the mean position

The given formula consists of few parameters that are hard to remember, thus we provides best spring constant calculator to solve particular calculations.

How to Find Spring Constant?

Let’s solve a few examples to make it easy to calculate the spring constant using Hooke’s Law.

Example #1:

A force of \(F = 21 \, \text{N}\) is applied on a spring to displace it by \(\delta x = 3 \, \text{m}\). Find the spring constant \(k\).

Solution:

\[ k = -\frac{F}{\delta x} \] \[ k = -\frac{21}{3} = 7 \, \text{N/m} \]

Example #2:

Find the spring constant when a spring is stretched by \(\delta x = 4.23 \, \text{m}\) with a force of \(F = 55 \, \text{N}\).

Solution:

\[ k = -\frac{F}{\delta x} = -\frac{55}{4.23} \approx 13.00 \, \text{N/m} \]

Example #3:

Determine the restoring force of a spring displaced by \(\delta x = 5 \, \text{m}\) with a spring constant \(k = 41 \, \text{N/m}\).

Solution:

\[ F = -k \, \delta x \] \[ F = 41 \times 5 = 205 \, \text{N} \]

You can also calculate these values quickly using a Hooke’s Law calculator.

How Spring Constant Calculator Works?

This free spring force calculator allows you to examine the parameters defined by the hooke’s law equation swiftly. Read on for a more comprehensive understanding of its proper use.

Input:

• Make a selection about the term you want to determine
• After you do so, write down the parameter values against the term selected
• Tap the calculate button

Output: Depending upon the selection you made, the free hookes law calculator calculates either:

• Restoring force in the spring
• Displacement covered by the spring
• Spring constant of the spring

FAQ’s:

What is spring constant affected by?

Following are the factors that actually affect the spring constant.

• Wire diameter
• Coil diameter
• Length of the spring

How does a spring constant affects the tension?

The tension in the spring wire is directly proportional to its restoring force. More the tension, the more the spring constant will be and vice versa. Keep in mind that the elongation remains unchanged.

Does spring constant of a spring changes?

Yes, as you increase the force to stretch a spring, the value of the spring constant also increases. Hooke’s laws helps you to determine this particular deviation in a span of seconds.

How do you add a spring constant?

In case there are two springs that are parallel to each other, then you can easily determine the spring constraint by adding the individual spring constants of both the springs.

What is effect of the alteration in spring constant on time period?

When the spring constant is increased, it increases the force of restoration that quickly moves the object to the mean position in less time. From this, we get to know that spring constant has an inverse relation with the time period.

What does large spring constant mean?

A large spring constant represents that the stiffness of the spring is high. Whereas, a smaller spring constant shows that the stiffness is also lower.

Which spring has the highest spring constant?

Spring 3 is considered the most stiffest among all springs and hence has the largest spring constant determined so far.

Is spring constant a slope?

Yes, the spring constant is considered as the slope of a line as it defines the relation among force and displacement on the graph.

Conclusion:

Spring constant is a very important factor to determine the stiffness of a spring attached to any object. So if you are examining spring movements, never neglect to make the use of a spring constant calculator to acquire certainty in results.
